Interface: Local Traffic Management Centers - Private Traveler Information Systems

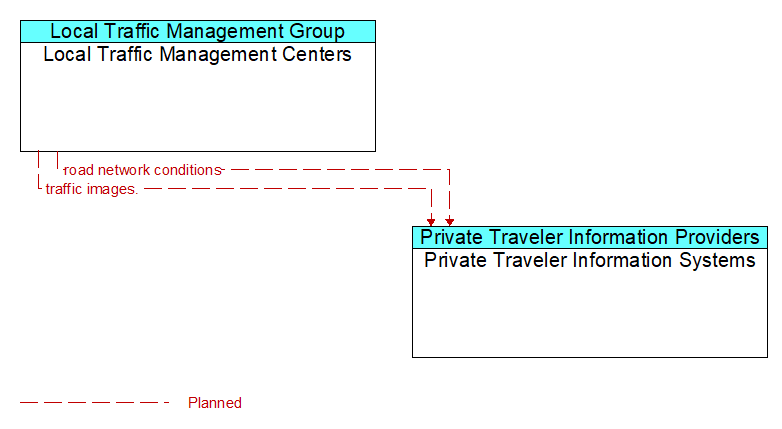

Local Traffic Management Centers to Private Traveler Information Systems Interface Diagram

Architecture Flow Definitions

road network conditions  (Planned )  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included along with a definition of the links, nodes, and routes that make up the road network.

traffic images.  (Planned )

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and the operational status of the surveillance system.
