Interface: Local Traffic Management Centers - Other Local Traffic Management Centers

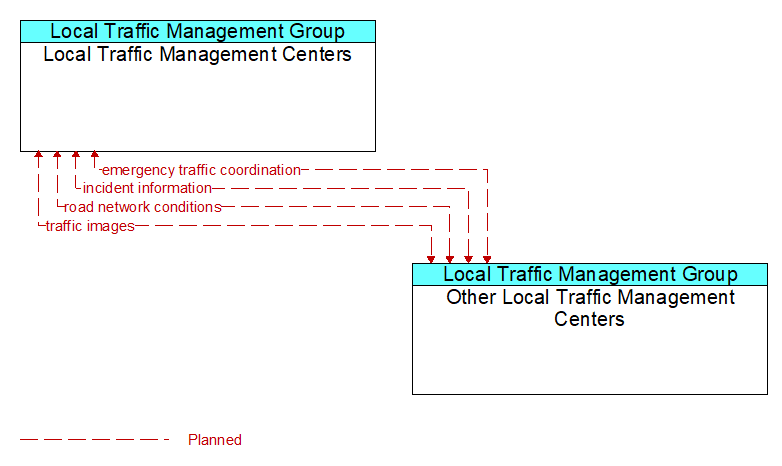

Local Traffic Management Centers to Other Local Traffic Management Centers Interface Diagram

Architecture Flow Definitions

emergency traffic coordination  (Planned )  Applicable ITS Standards

Coordination supporting disaster response including evacuation and reentry. Includes coordination of special traffic control strategies that support efficient evacuation and reentry while protecting and optimizing movement of response vehicles and other resources responding to the emergency.

incident information  (Planned )  Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transportation system operation ranging from routine incidents (e.g., disabled vehicle at the side of the road) through large-scale natural or human-caused disasters that involve loss of life, injuries, extensive property damage, and multi-jurisdictional response. This also includes special events, closures, and other planned events that may impact the transportation system.

road network conditions  (Planned )  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included along with a definition of the links, nodes, and routes that make up the road network.

traffic images  (Planned )

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications.
