Interface: Franklin County EMA Emergency Operation Center (EOC) - Central Ohio Multi-Modal Traveler Information System

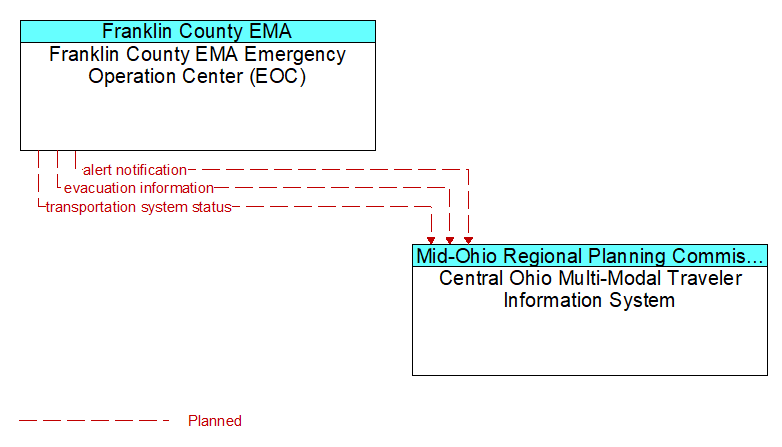

Franklin County EMA Emergency Operation Center (EOC) to Central Ohio Multi-Modal Traveler Information System Interface Diagram

Architecture Flow Definitions

alert notification  (Planned )  Applicable ITS Standards

Notification of a major emergency such as a natural or man–made disaster, civil emergency, or child abduction for distribution to the public. The flow identifies the alert originator, the nature of the emergency, the geographic area affected by the emergency, the effective time period, and information and instructions necessary for the public to respond to the alert. This flow may also identify specific information that should not be released to the public.

evacuation information  (Planned )  Applicable ITS Standards

Evacuation instructions and information including evacuation zones, evacuation times, and reentry times.

transportation system status  (Planned )  Applicable ITS Standards

Current status and condition of transportation infrastructure (e.g., tunnels, bridges, interchanges, TMC offices, maintenance facilities). In case of disaster or major incident, this flow provides an assessment of damage sustained by the surface transportation system including location and extent of the damage, estimate of remaining capacity and necessary restrictions, and time frame for repair and recovery.
