Interface: City of Columbus Traffic Management Center - COTA Fixed-Route Transit Management System

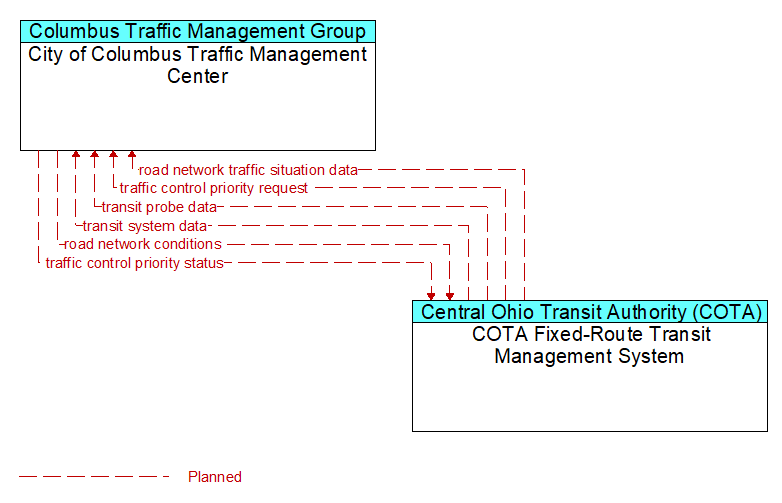

City of Columbus Traffic Management Center to COTA Fixed-Route Transit Management System Interface Diagram

Architecture Flow Definitions

road network conditions  (Planned )  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included.

road network traffic situation data  (Planned )  Applicable ITS Standards

Aggregated route usage, travel times, and other aggregated data collected from probe vehicles that can be used to estimate current traffic conditions.

traffic control priority request  (Planned )  Applicable ITS Standards

Request for signal priority at one or more intersections along a particular route.

traffic control priority status  (Planned )  Applicable ITS Standards

Status of signal priority request functions at the roadside (e.g., enabled or disabled).

transit probe data  (Planned )  Applicable ITS Standards

Aggregate probe data derived from tracking transit vehicles. Data collected could include transit vehicle speeds and travel times for a given link or collection of links.

transit system data  (Planned )  Applicable ITS Standards

Current transit system operations information indicating current transit routes, the level of service on each route, and the progress of individual vehicles along their routes for use in forecasting demand and estimating current transportation network performance.
