Interface: Franklin County COMBAT System - Local Maintenance and Construction Vehicles

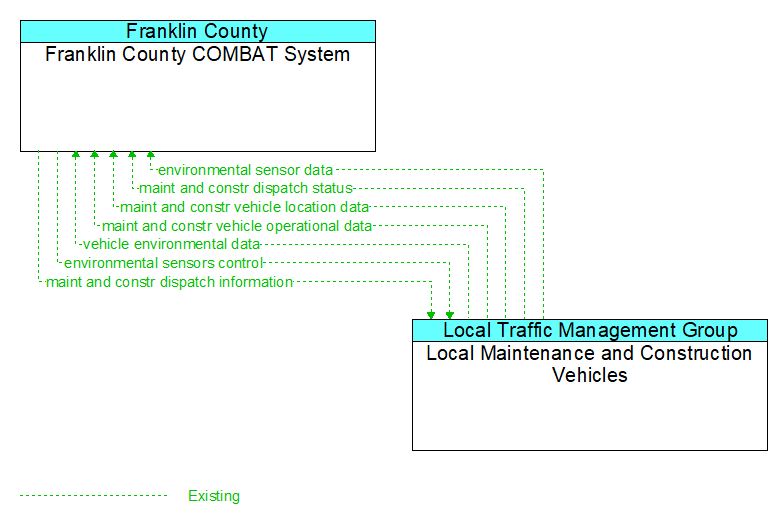

Franklin County COMBAT System to Local Maintenance and Construction Vehicles Interface Diagram

Architecture Flow Definitions

environmental probe data  (Existing)

Data from vehicle safety and convenience systems that can be used to estimate environmental conditions, including measured air temperature, exterior light status, wiper status, sun sensor status, rain sensor status, traction control status, anti-lock brake status, and other collected vehicle system status and sensor information. The collected data is reported along with the location, heading, and time that the data was collected. Both current data and snapshots of recent events (e.g., traction control or anti-lock brake system activations) may be reported.

environmental sensor data  (Existing)

Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) as measured and reported by fixed and/or mobile environmental sensors. Operational status of the sensors is also included.

environmental sensors control  (Existing)

Data used to configure and control environmental sensors.

maint and constr dispatch information  (Existing)

Information used to dispatch maintenance and construction vehicles, equipment, and crews and information used to keep work zone crews informed. This information includes routing information, traffic information, road restrictions, incident information, environmental information, decision support information, maintenance schedule data, dispatch instructions, personnel assignments, alert notifications, and corrective actions.

maint and constr dispatch status  (Existing)

Current maintenance and construction status including work data, operator status, crew status, and equipment status.

maint and constr vehicle location data  (Existing)

The current location and related status (e.g., direction and speed) of the maintenance/construction vehicle.

maint and constr vehicle operational data  (Existing)

Data that describes the maintenance and construction activity performed by the vehicle. Operational data includes materials usage (amount stored and current application rate), operational state of the maintenance equipment (e.g., blade up/down, spreader pattern), vehicle safety status, and other measures associated with the operation of a maintenance, construction, or other special purpose vehicle. Operational data may include basic operational status of the vehicle equipment or a more precise record of the work performed (e.g., application of crack sealant with precise locations and application characteristics).
