Interface: Local Traffic Signals - Private Rail Wayside Equipment

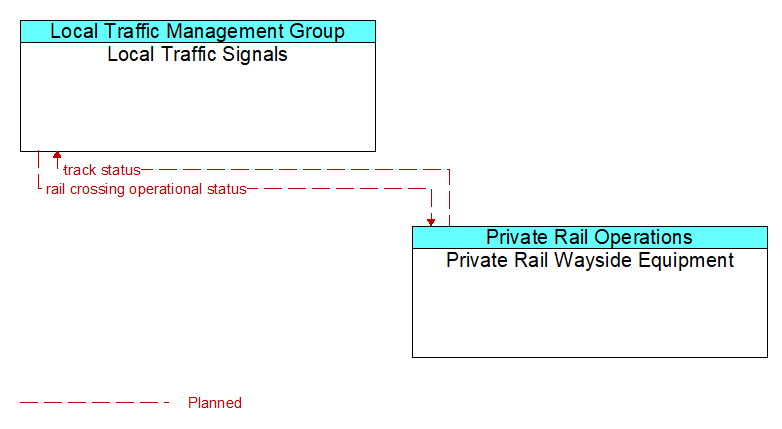

Local Traffic Signals to Private Rail Wayside Equipment Interface Diagram

Architecture Flow Definitions

rail crossing operational status  (Planned )  Applicable ITS Standards

Status of the highway–rail grade crossing equipment including both the current state or mode of operation and the current equipment condition.

track status  (Planned )  Applicable ITS Standards

Current status of the wayside equipment and notification of an arriving train.
