Interface: Traveler Information Devices - Ridesharing Services

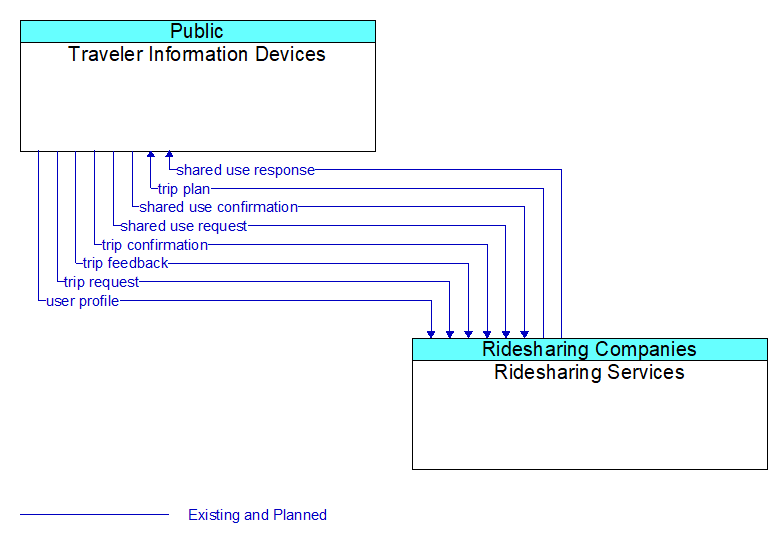

Traveler Information Devices to Ridesharing Services Interface Diagram

Architecture Flow Definitions

shared use confirmation  (Existing and Planned)  Applicable ITS Standards

Confirmation that traveler is going to use the shared use asset now or at a future time.

shared use request  (Existing and Planned)  Applicable ITS Standards

Request for shared use asset (e.g., car or bicycle) now or as a reservation for future use.

shared use response  (Existing and Planned)  Applicable ITS Standards

Response from shared use provider regarding availability of the shared use asset now or in the future. Includes any payment requirements.

trip confirmation  (Existing and Planned)  Applicable ITS Standards

Acknowledgement by the driver/traveler of acceptance of a trip plan with associated personal and payment information required to confirm reservations.

trip feedback  (Existing and Planned)  Applicable ITS Standards

Information provided at the conclusion of a trip that supports performance monitoring and system optimization. Information provided may include a record of the trip including HOV/HOT lane usage and user provided feedback at the conclusion of the trip.

trip plan  (Existing and Planned)  Applicable ITS Standards

A travel itinerary identifying a route and associated traveler information and instructions identifying recommended modes and transfer information, ride sharing options, and transit and parking reservation information.

trip request  (Existing and Planned)  Applicable ITS Standards

Request for trip planning services that identifies the trip origin, destination(s), timing, preferences, and constraints. The request may also include the requestor's location or a request for transit and parking reservations and ridesharing options associated with the trip.

user profile  (Existing and Planned)  Applicable ITS Standards

Information provided to register for a travel service and create a user account. The provided information includes personal identification, traveler preferences (e.g., maximum transfer wait time, maximum walking distance, mode preferences, special needs), device information, a user ID and password, and information to support payment transactions, if applicable.
