Interface: City of Columbus Connected Vehicle Roadside Equipment - County and City CV Service Monitoring Systems

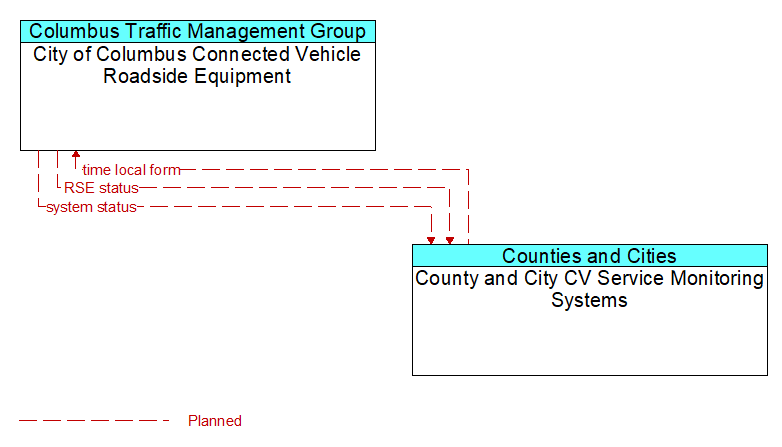

City of Columbus Connected Vehicle Roadside Equipment to County and City CV Service Monitoring Systems Interface Diagram

Architecture Flow Definitions

RSE status  (Planned )  Applicable ITS Standards

Monitoring of RSE device status including current mode, operational status, and configuration settings. It includes device housekeeping/heartbeat monitoring and includes network information, the status of installed applications, the configuration of managed devices, cybersecurity and physical security status of the RSE.

system status  (Planned )

Monitoring of system device status including current mode, operational status, and configuration settings. It includes device housekeeping/heartbeat monitoring and includes network information, the status of installed applications, and the configuration of managed devices.

time local form  (Planned )  Applicable ITS Standards

Time local form includes UTC time synchronized with the external source in a format usable by connected vehicle center functions.
