Interface: OSU TPS Dispatch Facility - OSU TPS Traffic Signals

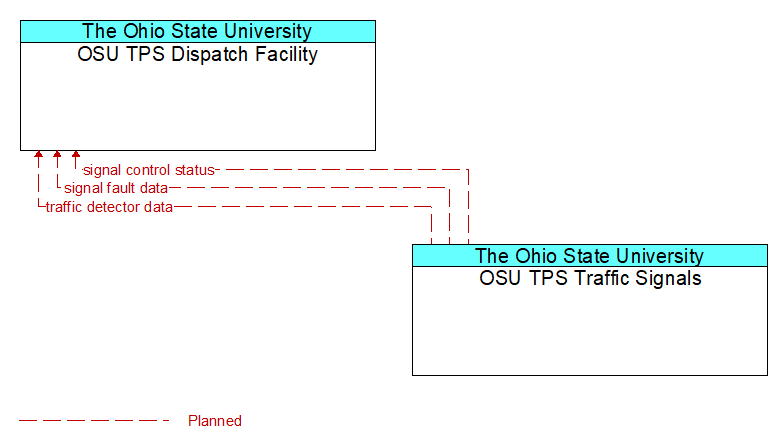

OSU TPS Dispatch Facility to OSU TPS Traffic Signals Interface Diagram

Architecture Flow Definitions

signal control status  (Planned )  Applicable ITS Standards

Operational and status data of traffic signal control equipment including operating condition and current indications.

signal fault data  (Planned )  Applicable ITS Standards

Faults reported by traffic signal control equipment.

traffic detector data  (Planned )  Applicable ITS Standards

Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic sensor system.
