Interface: City of Columbus TERT - ODOT CV Service Monitor System

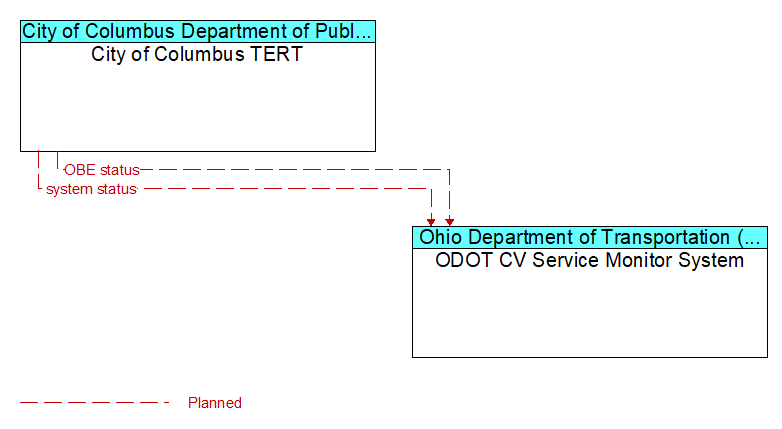

City of Columbus TERT to ODOT CV Service Monitor System Interface Diagram

Architecture Flow Definitions

OBE status  (Planned )  Applicable ITS Standards

Monitoring of OBE device status including current mode, operational status, and configuration settings. It includes device housekeeping/heartbeat monitoring and includes network information, the status of installed applications, and the configuration of managed devices.

system status  (Planned )

Monitoring of system device status including current mode, operational status, and configuration settings. It includes device housekeeping/heartbeat monitoring and includes network information, the status of installed applications, and the configuration of managed devices.
