Interface: COTA Paratransit Vehicles - City of Columbus Connected Vehicle Roadside Equipment

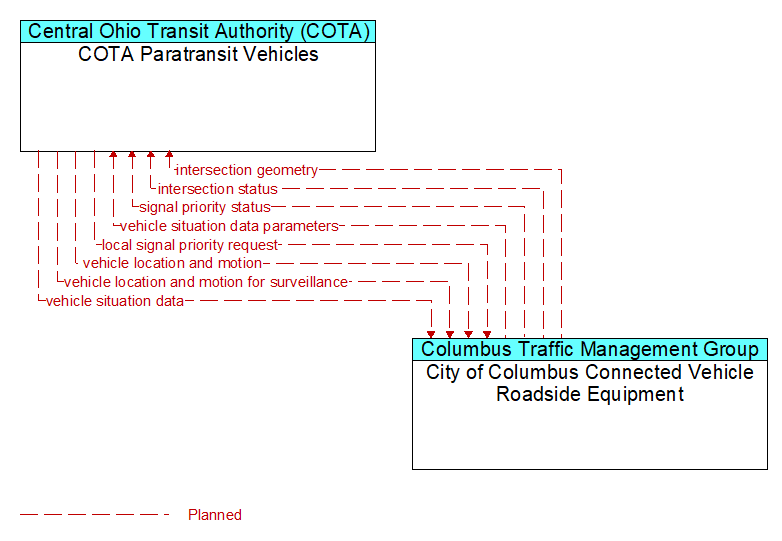

COTA Paratransit Vehicles to City of Columbus Connected Vehicle Roadside Equipment Interface Diagram

Architecture Flow Definitions

intersection geometry  (Planned )  Applicable ITS Standards

The physical geometry of an intersection covering the location and width of each approaching lane, egress lane, and valid paths between approaches and egresses. This flow also defines the location of stop lines, cross walks, specific traffic law restrictions for the intersection (e.g., turning movement restrictions), and other elements that support calculation of a safe and legal vehicle path through the intersection.

intersection status  (Planned )  Applicable ITS Standards

Current signal phase and timing information for all lanes at a signalized intersection. This flow identifies active lanes and lanes that are being stopped and specifies the length of time that the current state will persist for each lane. It also identifies signal priority and preemption status and pedestrian crossing status information where applicable.

local signal priority request  (Planned )  Applicable ITS Standards

Request from a vehicle to a signalized intersection for priority at that intersection. This flow also allows the vehicle to cancel a priority request (for example, when the vehicle clears the intersection).

signal priority status  (Planned )  Applicable ITS Standards

In response to a request for signal priority, this flow indicates the status of the priority or preemption request.

vehicle location and motion  (Planned )  Applicable ITS Standards

Data describing the vehicle's position, heading, speed, acceleration, transmission, steering wheel angle, braking status, size information, and trajectory.

vehicle location and motion for surveillance  (Planned )  Applicable ITS Standards

Data describing the vehicle's position, heading, speed, acceleration, transmission, steering wheel angle, braking status, size information, and trajectory. This flow represents monitoring of basic safety data ('vehicle location and motion') broadcast by passing connected vehicles for use in vehicle detection and traffic monitoring applications.

vehicle situation data  (Planned )  Applicable ITS Standards

This flow represents vehicle snapshots that may be provided by the vehicle to support traffic and environmental conditions monitoring. Snapshots are collected by the vehicle for specific events (e.g., when a sensor exceeds a threshold) or periodically and reported based on control parameters when communications is available. Traffic–related data includes snapshots of measured speed and heading and events including starts and stops, speed changes, and other vehicle control events. Environmental data may include measured air temperature, exterior light status, wiper status, sun sensor status, rain sensor status, traction control status, anti–lock brake status, and other collected vehicle system status and sensor information. The collected data is reported along with the location, heading, and time that the data was collected.

vehicle situation data parameters  (Planned )  Applicable ITS Standards

A request for vehicle situation data that includes parameters used to control the data that is reported and the flow of data reported by the vehicle. This flow identifies the type of data/snapshots that are requested and reporting parameters such as snapshot frequency, filtering criteria (data thresholds for reporting), and reporting interval.
